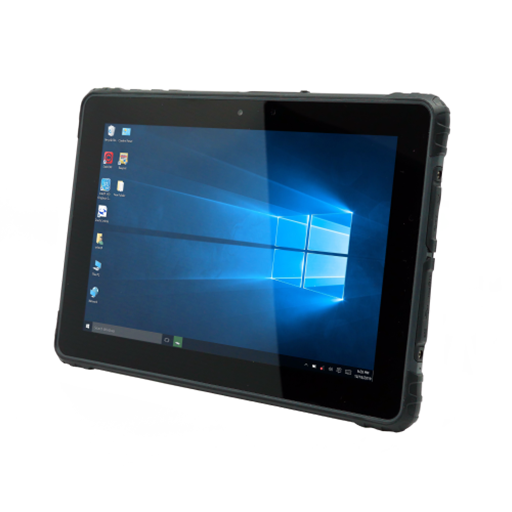

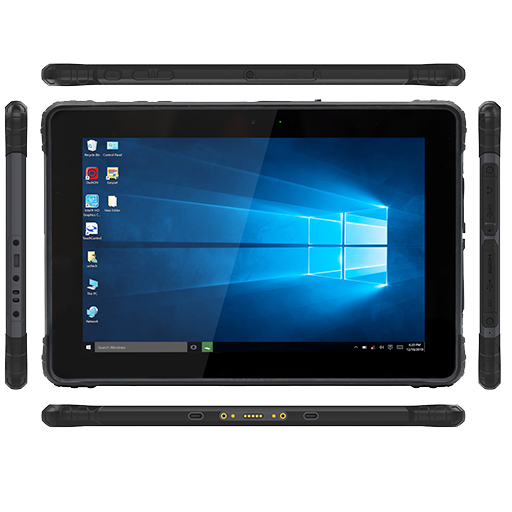

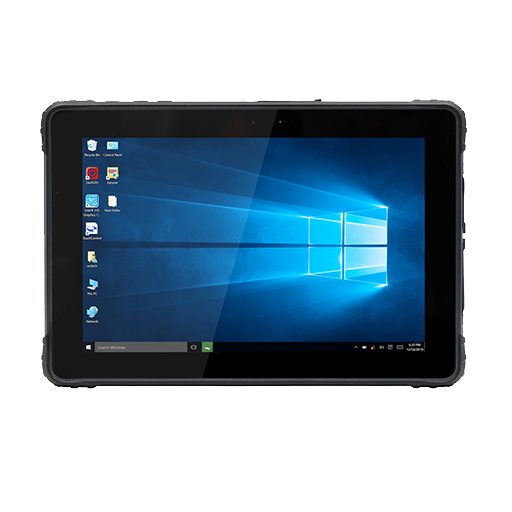

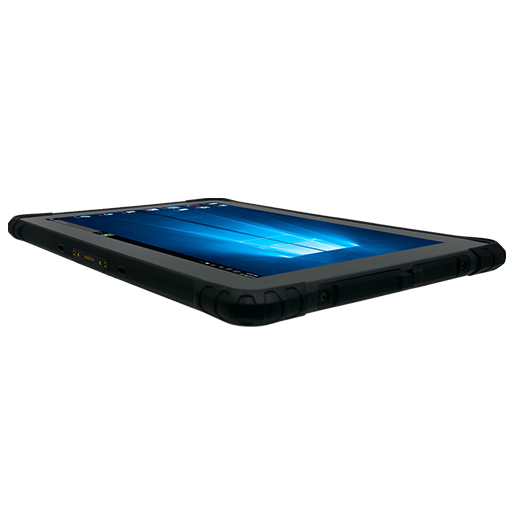

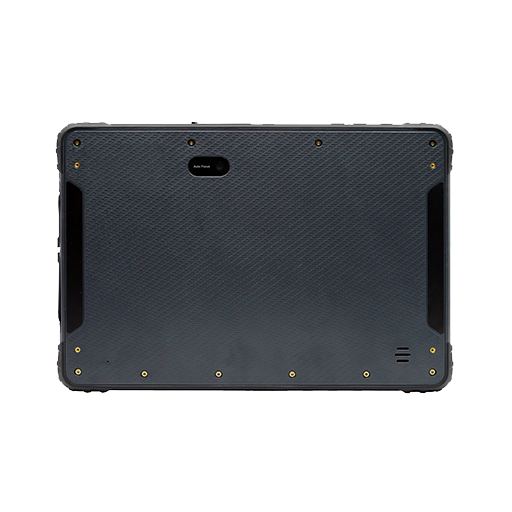

TB110 10.1 Inch Windows 10 Rugged Tablet
Meet the slim but tough tablet with portability for your business. Powered by a Windows 10 IoT OS, the unitech TB110 is an attractive lightweight tablet at just 780g, 13.3 mm thick for easy portability, and fortified with a tough outer casing and an environmental seal. ThisTB110 is one of the lightest tablets with decent performance and great durable features for retail, hospitality, healthcare and light-duty field service.
Operation System
- OS : OSWindows 10 IoT Enterprise
- CPU : 1.92G, Intel® Atom™ -Z8350 Quad Core Processor
- Memory :
RAM 4GB
Flash 64GB - Others : TPM (Trusted Platform Module) 2.0 support
Display
- Screen Size : 10.1" (1280 x 800) HD color screen with Backlight 400 nits
- Touch Panel : 10-point multi-touch and capacitive stylus, support glove mode and wet-touch mode
Camera
- Camera :
2MP front camera
5MP rear camera, AF
Indicator Type
- Type : LEDs, Vibrator
I/O Interfaces
- USBFull size USB 3.0 x1
Full size USB 2.0 x1 - POGO PINPOGO pin
- Expansion SlotDocking connector
DC Jack
Micro SDXC Card Reader - AudioMicrophone, speaker and 3.5mm audio jack
Power Source
- Main battery :
3.7V, 9000 mAh
embedded Battery
Communication
- Bluetooth®Bluetooth® 4.2
- WLAN802.11 a/b/g/n/ac
- SensorsLight, G-Sensor
Enclosure
- Dimensions ( W x H x D )268.0 x 183.6 x 13.3 (mm)
- Weight780g
Durability
- Drop Specification1.2m
- SealingIP67
- Tumble testMIL-STD 810G, shock & vibration
Environmental
- Operating temperature-10~55°C
Accessories
Accessories :
■ Power Adaptor (US) (PN# 1010-900059G)
■ X-Hand Strap (PN# 3210-900028G)
■ Capacitive stylus pen (PN# 384896G)
■ Desktop Docking (PN# 5000-900073G)
■ TB110 VESA MOUNT (By Project Based) (PN# 4070-900014G)
What comes in the box
The standard package contents :
■ TB110
■ Power Adaptor
(AC/DC adapter and AC power cord(US)
■ X-strap
Regulatory Approvals
- Regulatory Approvals : CE, FCC, BSMI
Warranty
- Hardware Warranty12 months
- StatementThis product is warranted against defects in workmanship and materials for a period of twelve months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information.
• Windows 10 IoT Enterprise OS
• Thin & lightweight < 800g
• 13.3 mm slim design for easy portability
• Rugged: IP67 rated, and 1.2 m drop
• Long-lasting embedded 9000mAh battery
• Support Bluetooth® 4.2, Wi-Fi 802.11 a/b/g/n/ac
• Fanless & low power consumption design
• Cradle for customer needs: Support display output, Ethernet
• Dual USB ports for keyboard and mouse
• Support Ivanti Wavelink mobile device management software & solutions
